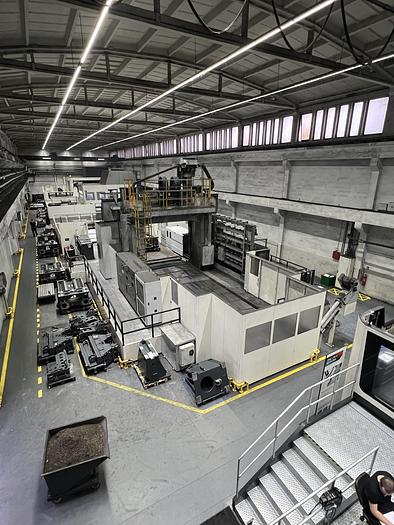

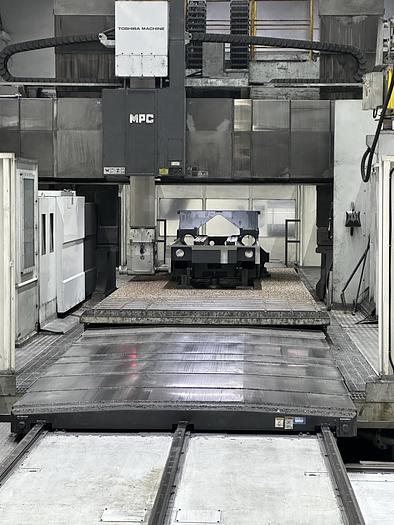

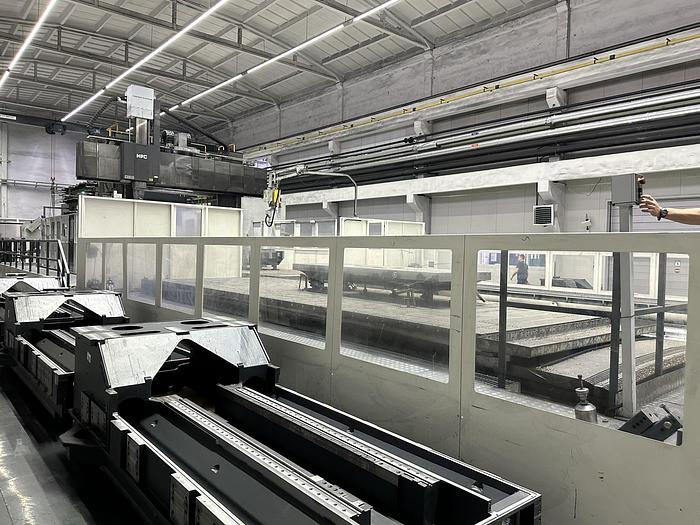

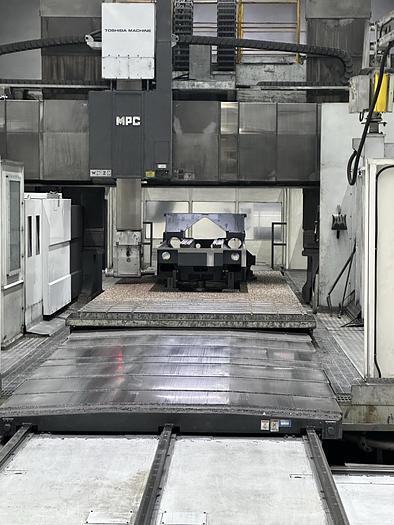

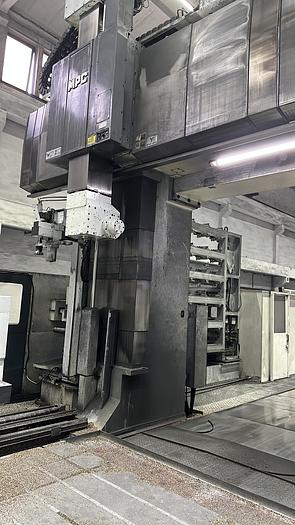

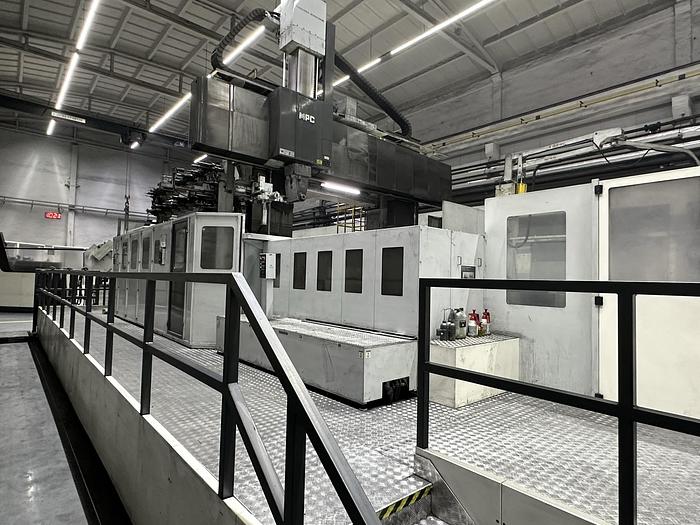

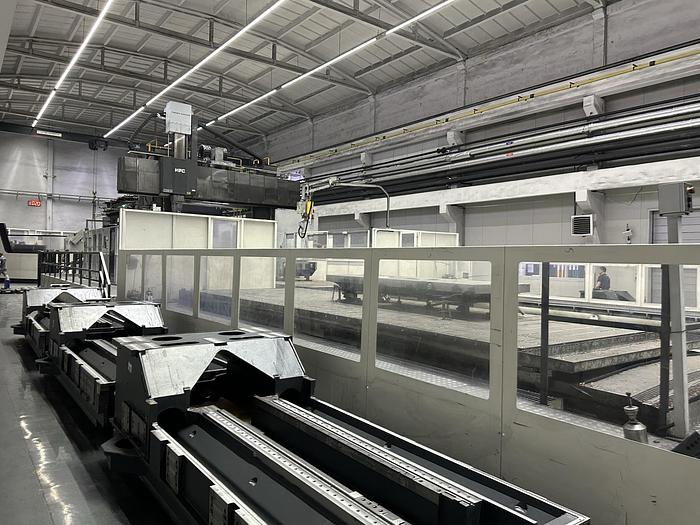

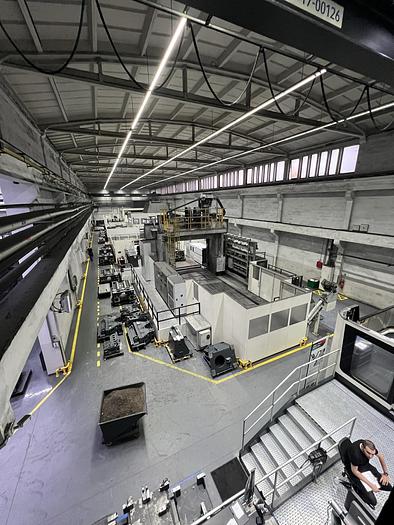

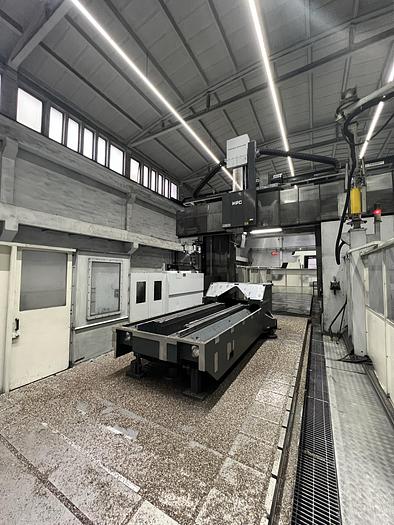

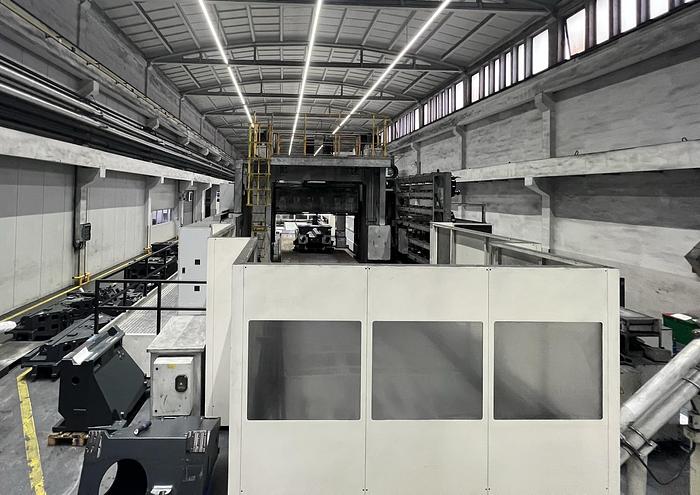

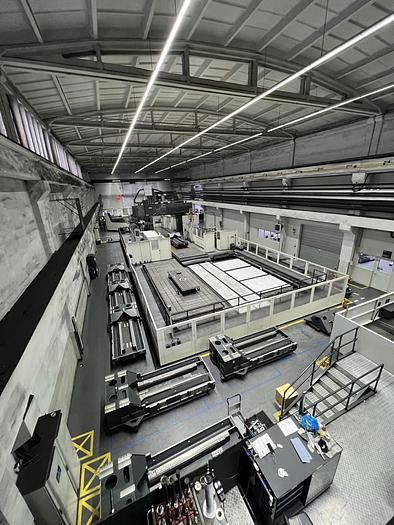

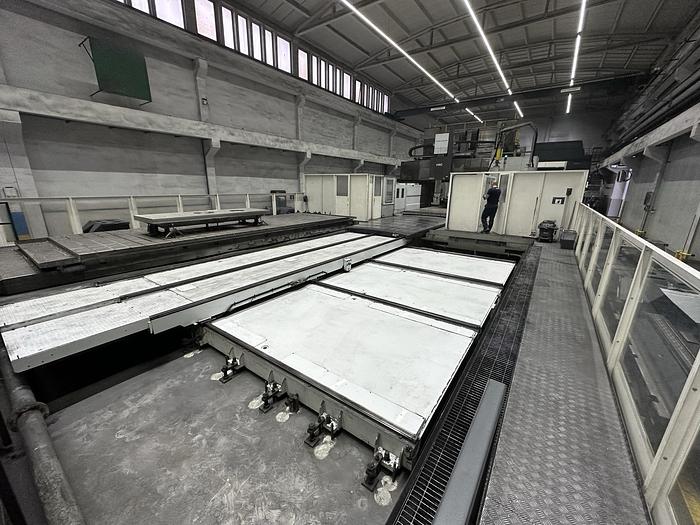

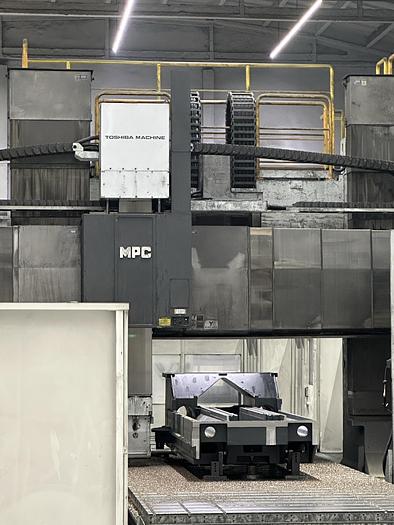

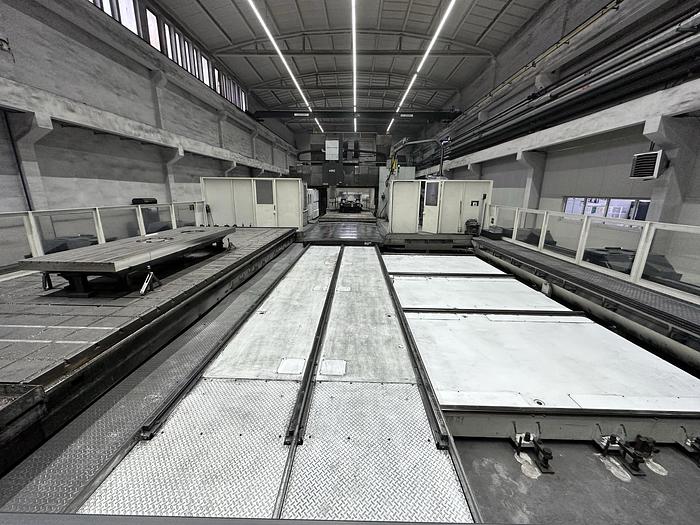

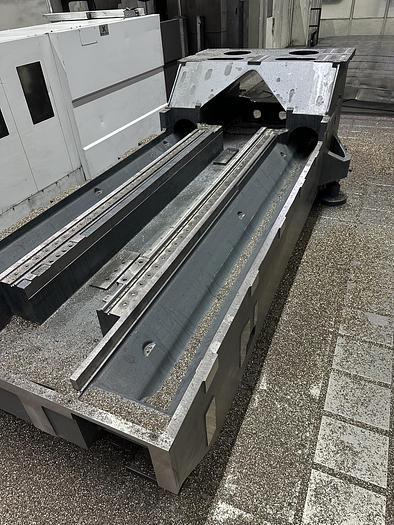

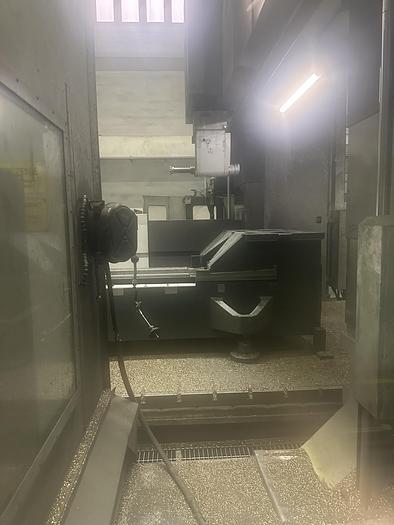

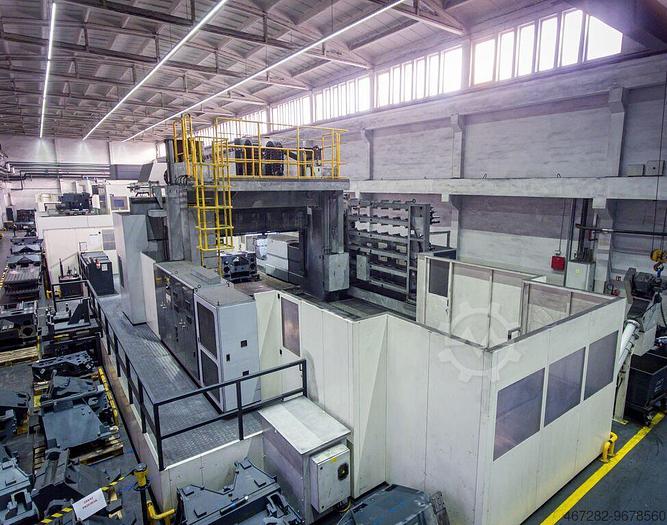

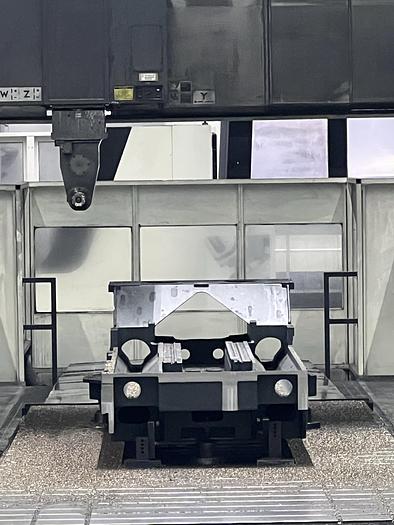

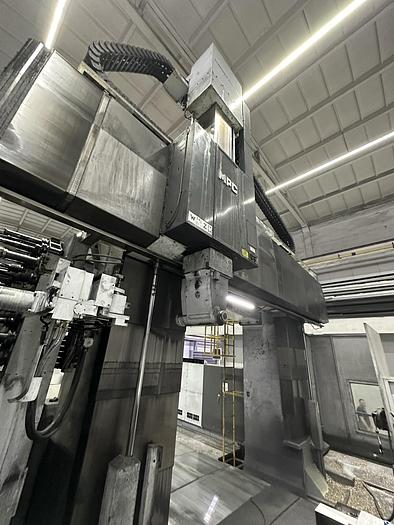

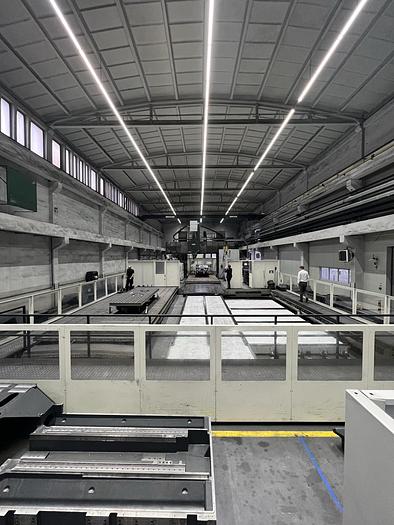

Portal Machining Center TOSHIBA MCP-3180B

Double Column Machining Center TOSHIBA MCP-3180B

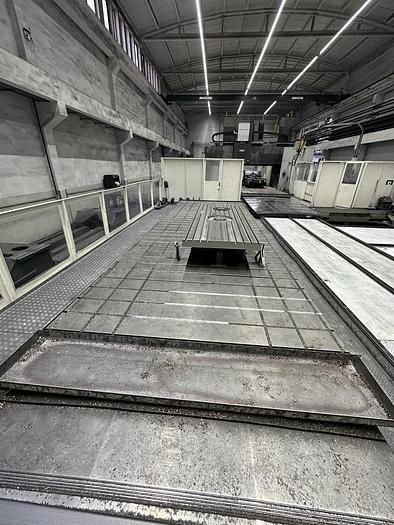

Table mm.8000 x 2700

Distance between columns mm.3100

X mm.9000

Y mm.3900

Z Verticaal RAM stroke mm.900

W Vertical Crossrail stroke mm.1600

Automatic indexed every 5 degrees 5 face head

Distance table to spindle nose mm.2440

Table load Kg. 20.000

Spindle speed 5-3000 rpm 2 ranges

Spindle taper BT 50

Ram section 380 x 380

Machine dimensions mm.29110 x 9900 x 7260

Machine weight Kg. 151.000

Year 2007

Standard options :

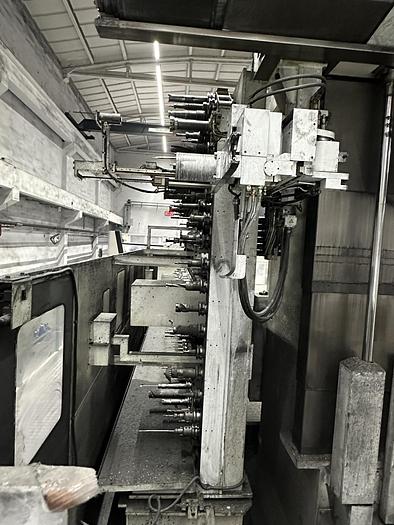

5-face cutter head

Automatic attachment (5-face cutter head or other attachments)index (AAI)

(4-position index by 90.)

Automatic tool loading/unloading device for vertical spindle and horizontal spindle)

CNC controller including standard and pack specifications

Pendant operation box with electrically-driven free arm

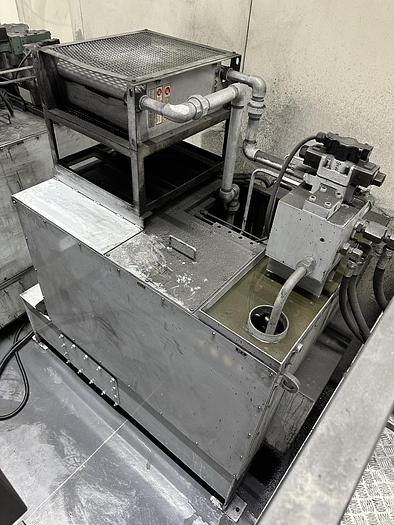

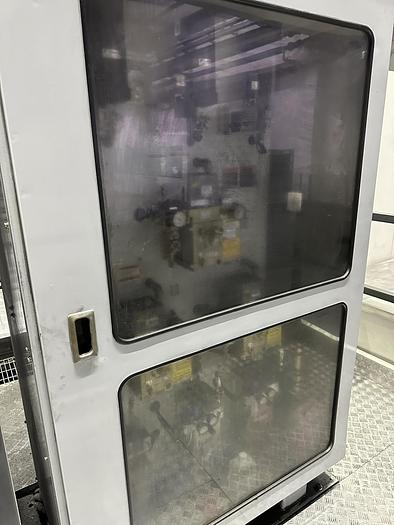

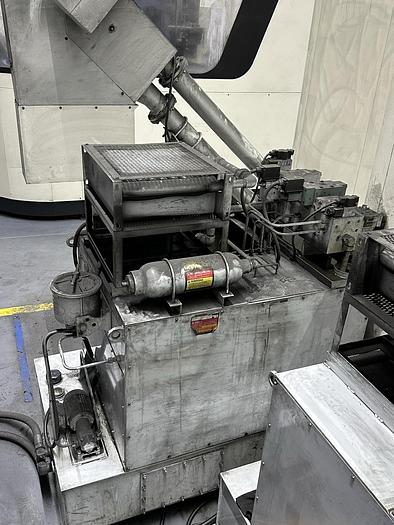

Hydraulic unit

Oil cooling unit (AKZ 908)

Hydraulic crossrail servo balancing system (proportional to spindle head position)

Hydraulic ram balancing cylinder

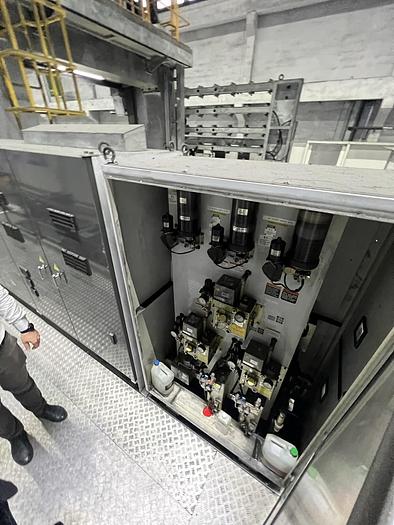

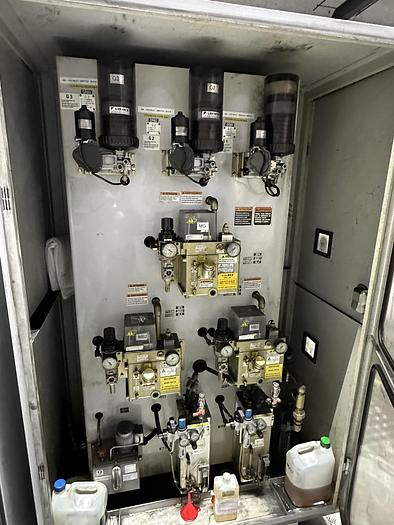

Oil mist lubrication unit for gears

Oil mist lubrication unit for bearings

Telescopic bed steel cover

Telescopic column steel cover

Telescopic crossrail steel cover

Service (or maintenance) tools

Spare parts (fuses and lamps)

Plug socket for connecting an external device

A plug socket (100 V AC, 3A) is provided on the machine control unit (front side of NC panel) to connect an external device.

Optionals included :

Auto power OFF device

Work light

3 colored operator call lamp

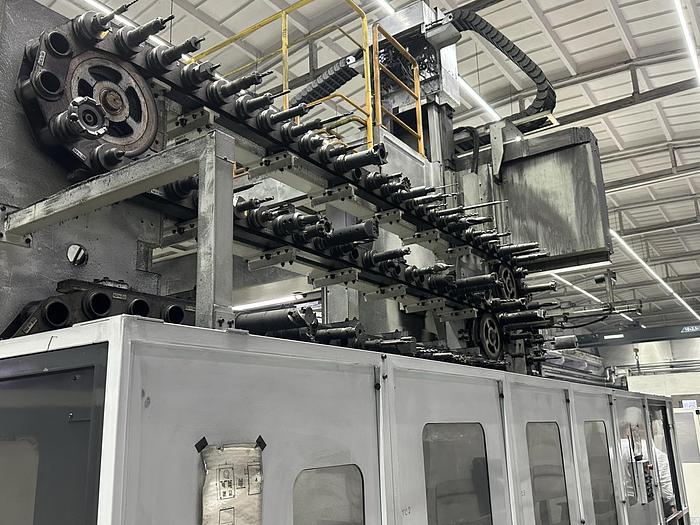

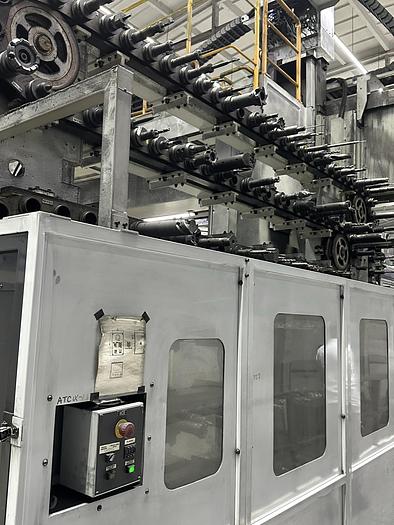

Automatic Tool Changer (ATC) 180 positions

Small diameter tool breakage detector

Retention knob POM50H1

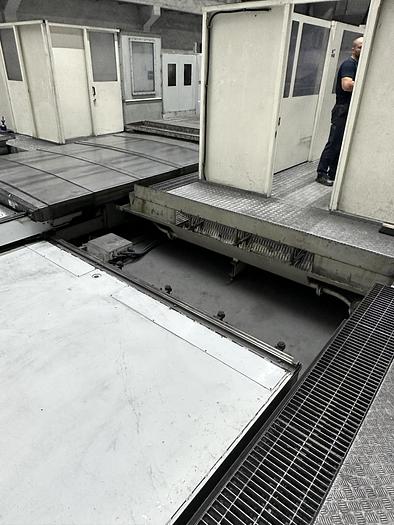

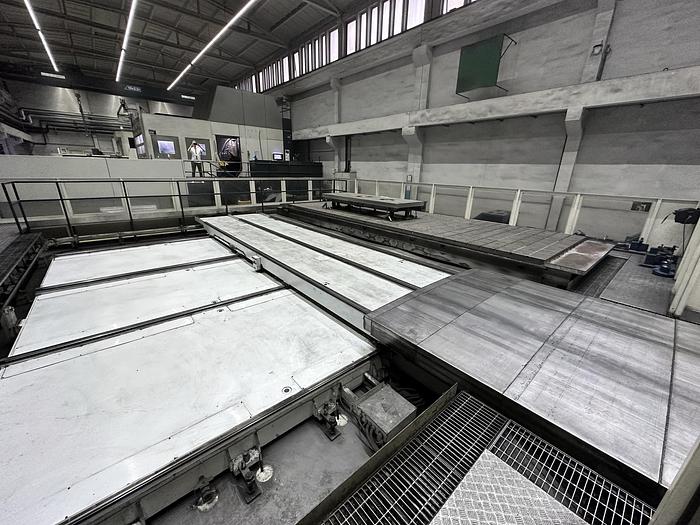

Automatic workpiece changer (AWC) with Direct Charging System, 2 tables

External program number search function

Automatic Attachment Changer (AAC)

72 positions Automatic Indexing for 5 face cutter head

Attachments for Snout 190 and Small Angle Head

Levelling blocks

Mist coolant unit

Splash guard cover on ATC side

Automatic measuring system RENISHAW

HEIDENHAIN for closed loop feedback system

Custom painting color

Coolant through spindle

Machining of reference grooves on table surface

Residual current protective device

Automatic grease lubrication system DAIKIN

W axis rapid traverse 6000 mm/min

Chip conveyor
