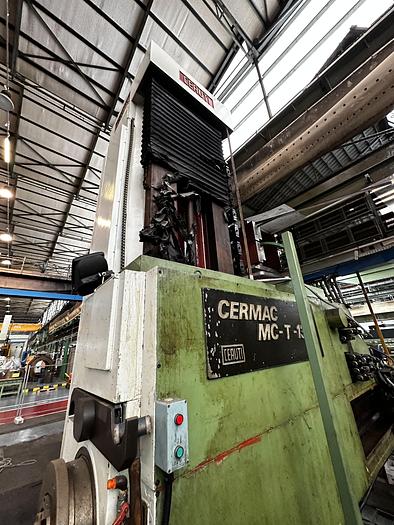

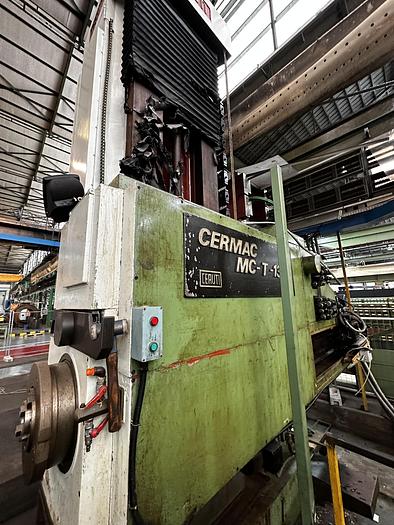

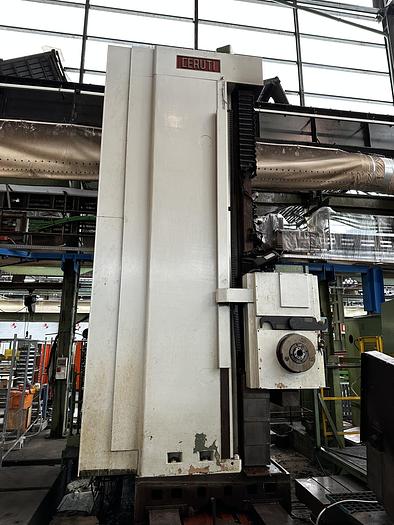

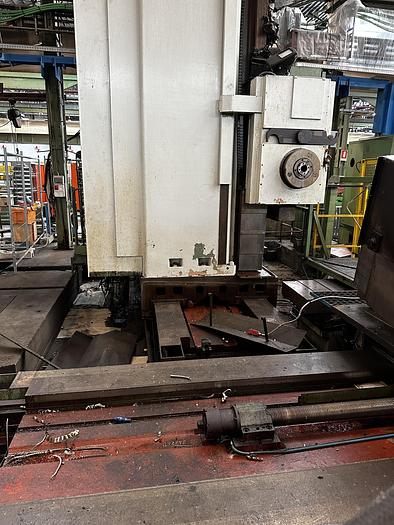

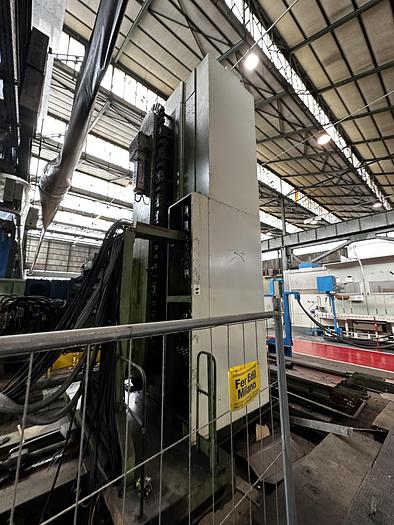

T Type Cnc Horizontal Borer CERUTI CERMAC MC-T-130
Sold
T Type Cnc Horizontal Borer CERUTI CERMAC MC-T-130
Location:Cinisello Balsamo, Italy
Description

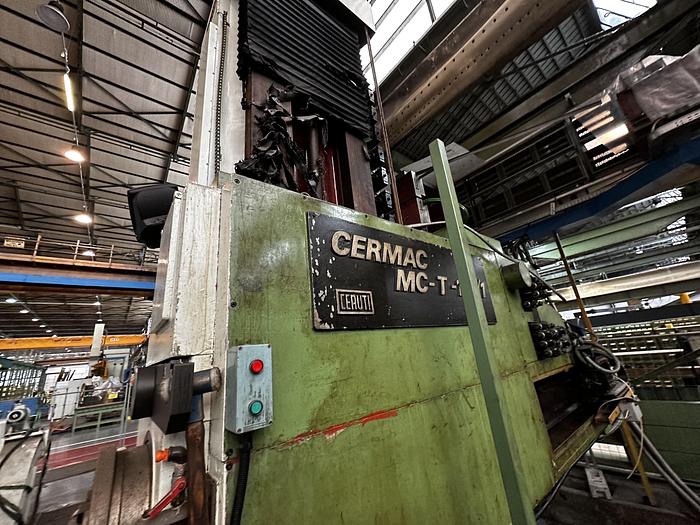

T-Type Cnc Horizontal Borer CERUTI CERMAC MC-T-130

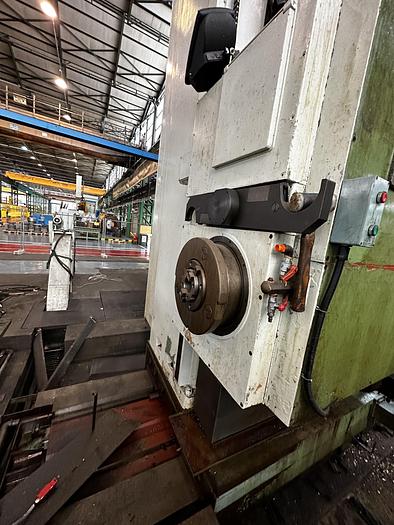

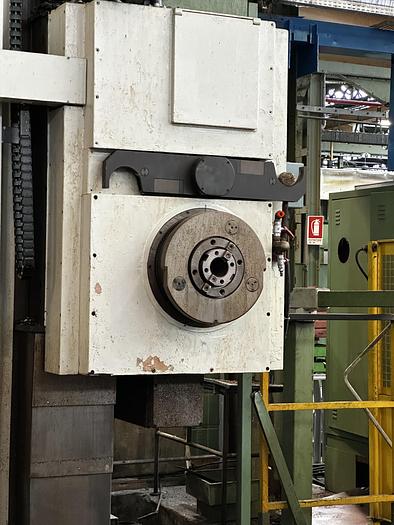

Boring spindle dia mm.130
Milling spindle dia mm.197
Ram dia mm.360
Spindle attachment Iso 50
Kw 35

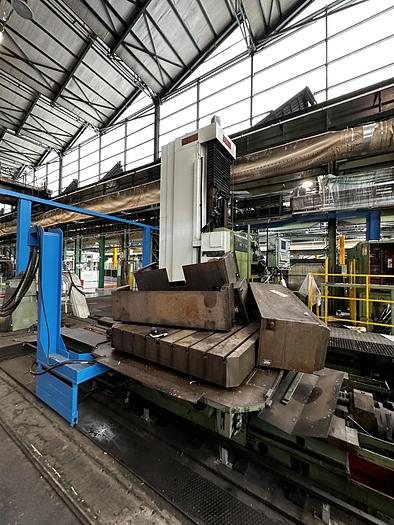

Table mm.2200 x 1800
X table travel mm.3100
Table load 15 Ton
360.000 positions
Rotation speed 4 rpm
Y Vertical travel mm.3000
W Column travel mm.1500
Z Spindle outstroke mm.1200
V Ram outstroke mm.700
Tool changer 60 positions

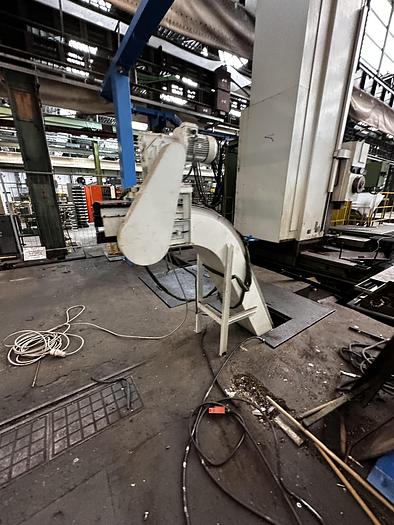

Conveyor
Box with tooling
Cnc ECS 4801 ( New in 2015 )
Machine weight Kg 40850
Table weight Kg 18000
Machine not working, IDEAL FOR RETROFIT PURPOSE
Specifications
| Manufacturer | CERUTI |
| Model | CERMAC MC-T-130 |
| Condition | Da sistemare |
| Table mm. | 2200 x 1800 |
| Boring spindle diameter mm. | 130 |
| Milling spindle diamater mm. | 197 |
| Ram diameter mm. | 360 |
| Stroke X mm. | 3000 |
| Stroke Y mm. | vertical 3000 |
| Stroke Z mm. | spindle outstroke 1200 |
| Stroke W mm. | Column travel 1500 |
| V Ram outstroke mm. | 700 |
| Cnc | ECS 4801 new in 2015 |
| Accessories | Milling Head |
| Tool changer positions | 60 |
| Spindle attachment | Iso 50 |
| Machine weight kg | Machine 40 tons, table 18 tons |
| Max table load Kg. | 18000 |
| Conveyor | Yes |
