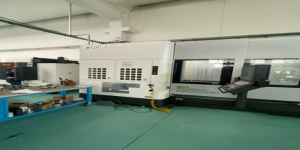

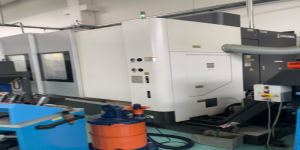

Turning Center OKUMA MULTUS U3000 2SW

Turning Center OKUMA MULTUS U3000 2SW

Main spindle :

BIG BORE ASA 8

22/15 Kw

4200 rpm

Bar passage mm.69

Subspindle :

Bar passage mm.51

Max swing and turning diameter mm.650

Distance between spindle noses mm.1883

Y axis mm.250

Turret

Milling spindle CAPTO 6

B axis index 0,001

22 KW

12000 Rpm

Center distance mm.1500

Automatic Rest

ATC 80 positions

Through spindle coolant OGURA

High pressure 70 Bar

Piece Measuring System “In Process”

Cnc OSP-P300S ( 19” OPS-SUITE )

Z axis origin relocation after electronic probe check on subspindle W axis

Z axis origin relocation after electronic probe check on main spindle C and W axis

Tool lasting management

Turning function Y

Helicoidal Interpolation MAC TURN/MULTUS

Conversational programming IGF advanced  M-E Kit

Interactive cycles

Real 3D simulation

Toolholders DataBase

Automatic One Touch Programming

CAD Mathmatic importing (.sti)

Conveyor MT10

Fume extractor
